Product Description

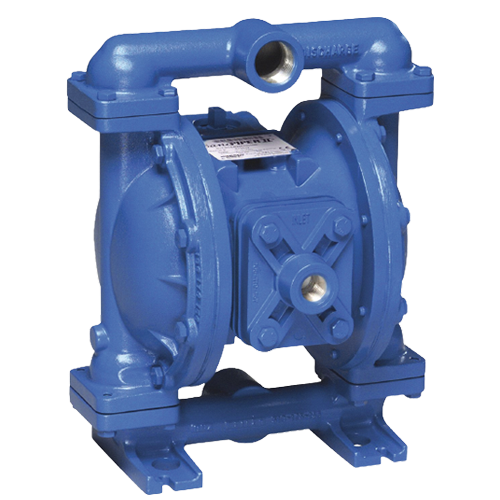

Warren Rupp. Inc. (Sandpiper) is pioneer in design and manufacturer of Sandpiper AODD Pumps. The company is one of the largest producer of Air Operated / Gas Operated Diaphragm Pumps and its accessories.
Sandpiper Air Operated Double Diaphragm pumps are available in metallic and non metallic material of construction.
The pumps are UL, USDA certified. The pumps are suitable for mostly all industrial applications.
Sandpiper metallic and non metallic pumps consist of Heavy Duty Ball Valve, Heavy Duty Flap Valve, High Pressure and Spill containment which takes care of major application and maintenance issues.
Product Description:
- Port Size: 1″ to 3″ NPT or 1″ to 3″ BSP (Tapered) 1″ to 3″ ANSI Flange or 3″ DIN Flange
- Capacity: 0 to 235 gpm (889 lpm)
- Air Distribution Valve: No-lube, no-stall design
- Solids-Handling: Up to 3″
- Heads Up To: 125 psi or 289 ft. of water (8.6 bar or 88 meters)
- Max Operating Pressure: 125 psi (8.6 bar)
Features and Benefits:
- Dry run without damaging the pump or system
- Pumps solid laden fluids without pump or product damage
- Self priming, works in suction lift application
- Deadheads safely, with no pump or product damage
- Shear sensitive, does not shear or separate product being pump.
- No electricity required and can be fully grounded.
- Submersible, can be submersed completely without safety or performance issue
- Sealless design, no expenses mechanical seal or packing required
- Variable head and pressure
- Optional bottom discharge porting
